SBG60 - Resistor
SBG60 - resistor
This resistor series covers the power range from 500 W to 12 kW and is suitable, among other things, for use as a braking or power resistor for different applications.

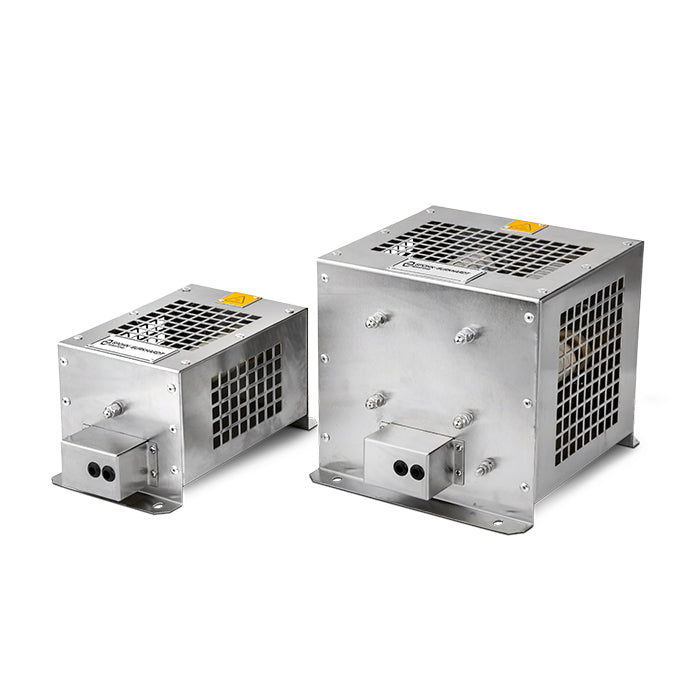

The wire-wound resistance elements are touch-protected in a stainless steel housing in protection class IP20 installed and wired to the outside on terminals. The resistors are designed for floor or wall mounting and are equipped with a thermal switch as standard.
The availability in different performance classes and in a large number of different ohm values ensures optimal adaptation to the respective application.
Power (W): 6000
Resistance Range (Ohm): 3R3 - 56R
Gradations according to E12 series
More information: with thermal switch
